I. Introduction: The Power of Centrifugal Technology

In industrial environments where precise air movement is critical – from ventilating hazardous fumes to cooling high-heat machinery – centrifugal fans and blowers serve as the backbone of efficient airflow systems. Unlike simple axial fans that push air parallel to the shaft, centrifugal designs harness rotational energy to accelerate air radially outward, generating significantly higher pressures essential for overcoming resistance in ducts, filters, and complex ventilation networks.

Core Engineering Principle

Centrifugal force transforms kinetic energy into powerful directional airflow:

1. Air Intake: Air enters axially through the impeller’s eye.

2. Radial Acceleration: Rotating blades (impellers) fling air outward at 90° using centrifugal force.

3. Pressure Conversion: Air compresses in the spiral housing (volute), converting velocity into static pressure.
   This process enables centrifugal blowers to move air against pressures exceeding 15 inches of water gauge (in. w.g.) – a capability unmatched by axial alternatives.

Industries Revolutionized by Centrifugal Technology

• HVAC Systems: High-pressure air delivery in skyscrapers, hospitals, and cleanrooms.

• Manufacturing: Fume extraction in welding/chemical plants; material conveying in food processing.

• Power Generation: Combustion air supply for boilers; exhaust gas recirculation.

• Waste Treatment: Aeration in bioreactors; odor control ventilation.

Why This Matters: In energy-intensive sectors, centrifugal blowers reduce operating costs by 20–35% versus axial fans or positive displacement blowers, while ensuring reliable, low-noise operation in critical applications.

II. How Centrifugal Blowers Work: Engineering Breakdown

Core Mechanics:

1. Air Intake

   • Air enters axially through the impeller "eye" (inlet)

2. Radial Acceleration

   • Rotating impeller blades (500–3,500 RPM) force air outward at 90° via centrifugal force

3. Pressure Conversion

   • Kinetic energy converts to static pressure in the spiral volute housing

   • Discharged through tangential outlet

Key Components:

Part	Function	Material Options
Impeller	Accelerates air radially	Steel, Aluminum, FRP, SS 316
Volute Housing	Converts velocity → static pressure	Galvanized steel, Powder-coated
Drive System	Motor + belt/direct drive	EC Motors (Variable speed)
Inlet/Outlet	Directional airflow control	Flanged, rectangular, circular

III. 3 Types of Industrial Centrifugal Fans

1. Forward-Curved (Squirrel Cage) Blowers

• Design:

  • 24–64 shallow, forward-facing blades

  • Small impeller diameter (12–24 inches)

• Performance:

  • Max Pressure: ≤ 5 in. w.g.

  • Efficiency: 60–65%

• Best For:

  • Low-static HVAC systems

  • Quiet operation (40–50 dB)

• Limitation:

  • Motor overload risk at high static pressure

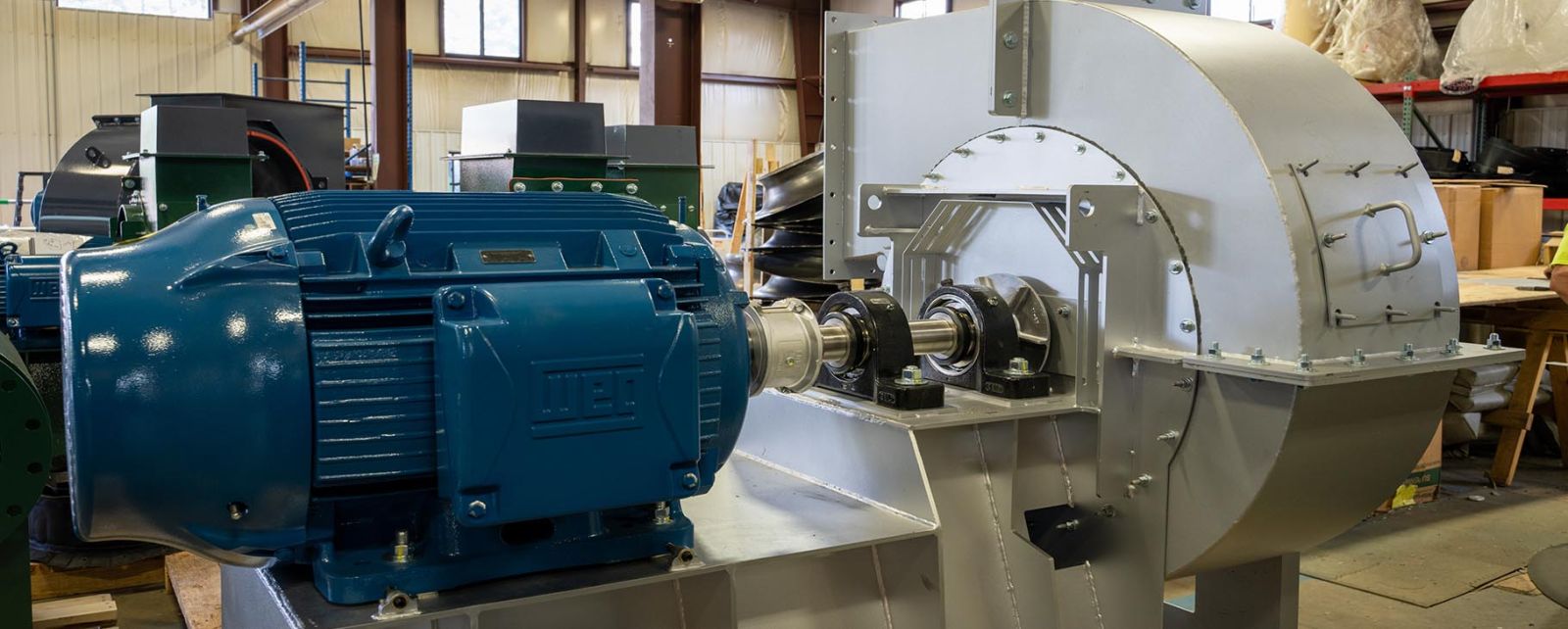

2. Backward-Curved Blowers

• Design:

  • 6–12 steeply angled blades

  • Large impeller diameter (up to 72 inches)

• Performance:

  • Max Pressure: 15 in. w.g.

  • Efficiency: 85% (AMCA 210 verified)

• Advantages:

  • Non-overloading motors

  • Self-cleaning blades for dusty air

  • 30% energy savings vs. forward-curved

• Applications:

  • Factory exhaust, high-pressure ducting

3. Radial (Straight-Blade) Blowers

• Design:

  • 6–12 flat, paddle-like blades

  • Reinforced blade edges

• Performance:

  • Max Pressure: 12 in. w.g.

  • Efficiency: 70%

• Strength:

  • Handles abrasive materials (dust, wood chips)

  • Minimal particle buildup

• Industrial Uses:

  • Pneumatic conveying, sandblasting systems

Comparison Summary

Type	Pressure	Efficiency	Ideal Use Case	Avoid
Forward-Curved	Low (≤5")	60–65%	Commercial HVAC	High-resistance ducts
Backward-Curved	High (15")	85%	Industrial exhaust/process	Viscous fumes
Radial	Medium (12")	70%	Abrasive material handling	Clean-room environments

 Pro Tip: Backward-curved blowers deliver the optimal balance of pressure and efficiency for 80% of industrial applications.

IV. Centrifugal vs. Alternatives: Selecting the Right Technology

(Text-Only Comparison)

Application Need	Optimal Solution	Technical Rationale
High-pressure ducted systems (e.g., factory exhaust, long ducts)	Centrifugal Blower	Generates 3X higher static pressure than axial fans (up to 15 in. w.g. vs. 0.5–2 in. w.g.)
Extreme pressure demands (>20 in. w.g., e.g., pneumatic conveying)	Positive Displacement Blower	Creates positive airflow displacement for ultra-high pressure (30+ in. w.g.)
Open-space cooling (e.g., warehouse ventilation)	Axial Fan	Delivers higher CFM at lower cost for low-resistance applications
Variable airflow control (e.g., VAV systems)	Backward-Curved Centrifugal	EC motor compatibility enables 30–100% speed modulation without efficiency loss

Designer Insight: For applications requiring 5–15 in. w.g. (80% of industrial needs), centrifugal blowers offer superior energy efficiency and pressure control over axial fans or PD blowers.

V. Key Advantages of Industrial Centrifugal Blowers

1. Energy Efficiency Dominance

• 20–30% lower operating costs vs. axial fans at equivalent pressure

• 85% peak efficiency in backward-curved designs (AMCA 210-verified)

• EC motor integration slashes energy use by 40% at partial loads

2. Unmatched Pressure Performance

• 15 in. w.g. static pressure capability (ideal for ducted systems)

• Non-overloading motors maintain stable airflow at peak resistance

3. Industrial-Grade Durability

• 80,000+ hour service life – 2X longer than budget blowers

• Stainless steel/FRP construction withstands corrosion, abrasives, and 250°C temperatures

4. Whisper-Quiet Operation

• 35–45 dB(A) sound levels – 50% quieter than PD blowers

• Aerodynamic volute design eliminates turbulent noise

VI. Industrial Applications: Where Centrifugal Blowers Excel

1. Exhaust & Fume Control

• Welding/chemical plants: Remove toxic fumes (backward-curved)

• Parking garages: Smoke evacuation (radial blade)

• Laboratories: Contain hazardous vapors (ATEX-certified units)

2. Material Handling Systems

• Cement/wood processing: Dust collection (radial blade)

• Food industry: Grain/powder conveying (polished SS impellers)

• Recycling plants: Air-sorting separation

3. Process Air Supply

• Boiler rooms: High-pressure combustion air (15 in. w.g.)

• Drying ovens: Uniform heat distribution (high-temp models)

• Wastewater treatment: Aeration blowers

4. Large-Scale HVAC

• Hospitals: Infection control ventilation (HEPA-compatible)

• Data centers: Precision cooling (EC motor modulation)

• Cleanrooms: ISO Class 5–8 compliance

VII. Critical Selection Factors for Industrial Centrifugal Blowers

1. CFM vs. Static Pressure: The Deciding Factors

Priority	When CFM Matters More	When Pressure is Critical
Application	Open-space cooling	Ducted/resistive systems
Key Metric	Air volume (e.g., 10,000 CFM)	Pressure (e.g., 12 in. w.g.)
Calculation	CFM = Area (sq ft) × Velocity (fpm)	SP = Resistance (ducts + filters)

Rule of Thumb: For ducted systems, select a blower that achieves required CFM at 1.25X your system’s static pressure to avoid underperformance.

2. Air Conditions Dictate Material Choice

• Clean Air (HVAC, electronics cooling):

  • Impeller: Aluminum/powder-coated steel

  • Efficiency Focus: Backward-curved blades

• Abrasive Media (dust, wood chips):

  • Impeller: Hardened steel/AR400 radial blades

  • Protection: Wear-resistant liners

• Corrosive Fumes (chemicals, moisture):

  • Impeller/Housing: 316L stainless steel/FRP

3. Space Optimization: Plug Fans vs. Traditional

Feature	Plug Fans	Traditional Centrifugal
Footprint	40% smaller	Standard
Installation	Direct duct mounting	Requires separate base/ductwork
Best For	Retrofits, tight spaces	New high-pressure systems

4. Efficiency Tiers by Impeller Design

• Backward-Curved: 85% efficiency (ideal for 24/7 operations)

• Radial: 70% efficiency (sacrifice efficiency for durability)

• Forward-Curved: 65% efficiency (budget low-pressure apps)

 Tip: A 15HP backward-curved blower saves $6,200/year vs. radial at $0.12/kWh.

VIII. Maintenance & Troubleshooting: Maximizing Blower Lifespan

Common Failures & Solutions

Failure	Root Cause	Prevention
Bearing Wear	Imbalance → vibration	Laser alignment + dynamic balancing
Impeller Buildup	Sticky/abrasive particles	Monthly inspection + automated wash
Motor Overload	Undersized for pressure zones	Proper sizing (use AMCA 210 calc tools)
Reduced Airflow	Clogged filters/ducts	Differential pressure monitoring

Proactive Maintenance Protocol

1. Daily: Check amperage draw (indicates load changes)

2. Monthly:

   • Inspect belts (tension/cracking)

   • Clean filters/pre-filter screens

3. Quarterly:

   • Lubricate bearings (NLGI Grade 2 grease)

   • Verify motor alignment

4. Annually:

   • Dynamic balancing (ISO 1940 G2.5 standard)

   • Volute/internal blade inspection

Avoid Catastrophic Failure: 3 Golden Rules

1. Never exceed max. RPM (causes impeller fracture)

2. Install vibration sensors (alert at >4.5 mm/s velocity)

3. Size for worst-case pressure (add 25% safety margin)

 Critical Note: 60% of premature failures stem from improper sizing – use our [free blower sizing tool] to prevent this.

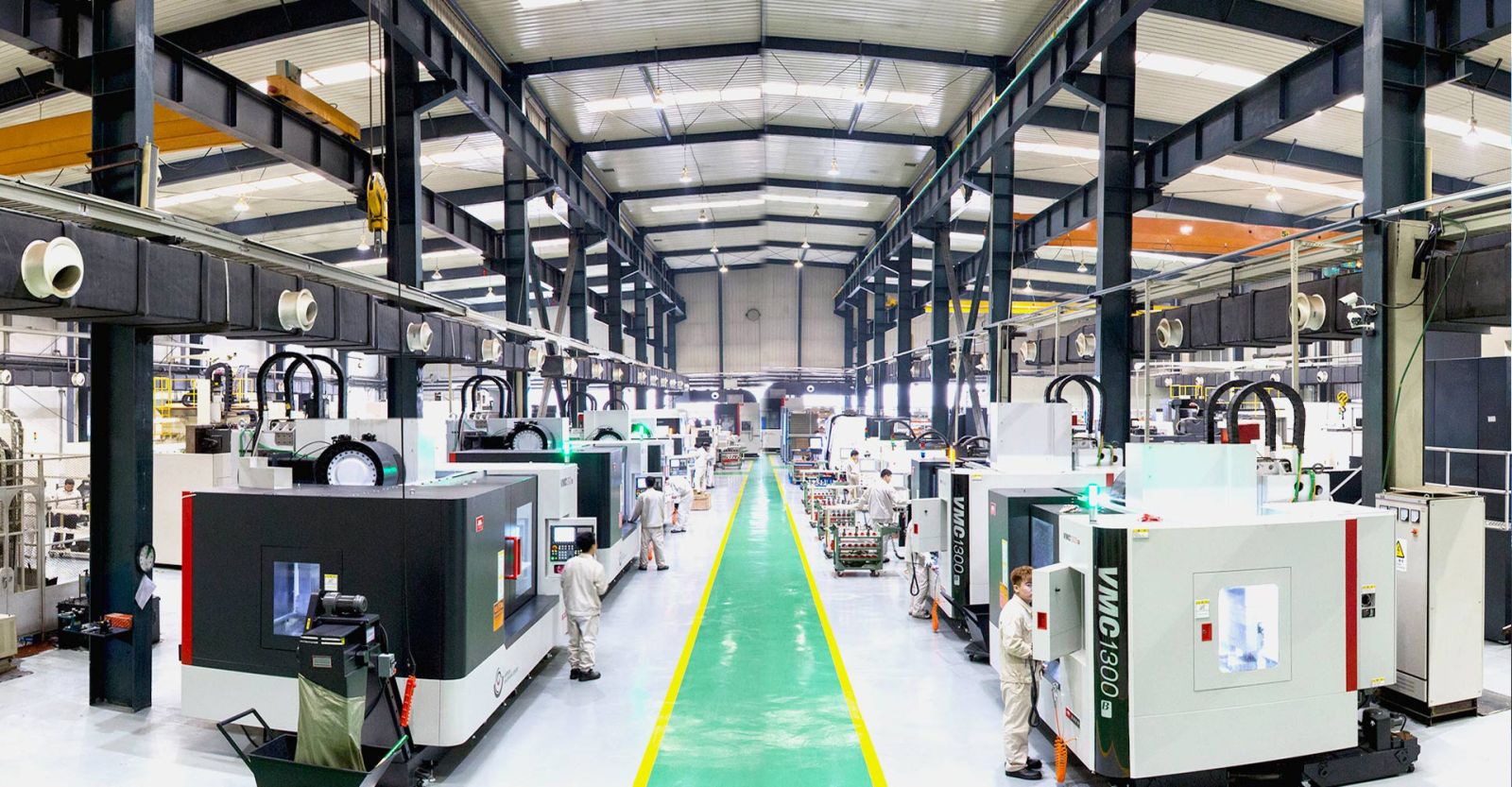

IX. Why Partner With Us? Manufacturing Excellence

Custom Engineering Capabilities

• CFD-Optimized Impellers: Laser-scanned airflow modeling for peak efficiency at your exact CFM/pressure point

• Material Science: Abrasion-resistant coatings (WC-CoCr) for particulate-laden environments

• Performance Validation: AMCA 210 testing with certified reports for every unit

Certified Reliability

• 5-Year Warranty: Industry's longest coverage (2X standard)

• 80,000-Hour Design Life: Validated by ISO 13349 accelerated lifecycle testing

• Sealed for Harsh Environments: IP55 protection + 316SS construction

Smart Integration Ready

• BMS Connectivity: Modbus RTU, BACnet MS/TP, and Ethernet/IP protocols

• Real-Time Monitoring: Airflow, power draw, and vibration analytics via IoT gateway

• Predictive Maintenance: AI-driven failure alerts 200+ hours before downtime

X. FAQ: Expert Answers to Top Customer Questions

Q: What’s the difference between a fan and a blower?
*A: Per ASME PTC 11 standards, blowers operate at 1.1–1.2+ pressure ratio; fans below 1.1. Centrifugal blowers deliver higher pressure for ducted systems.*

Q: Centrifugal vs. axial fan – which is better?
*A: Centrifugal excels in pressurized ducts (3X higher pressure capability); axial suits low-resistance, high-CFM applications like cooling towers.*

Q: Most efficient centrifugal fan type?
*A: Backward-curved designs achieve 85% aerodynamic efficiency – 25% higher than forward-curved models.*

Q: Typical centrifugal blower lifespan?
*A: 80,000+ operating hours (9+ years at 24/7 duty) with quarterly maintenance.*

Q: How to calculate CFM for centrifugal blowers?
A: CFM = (Area ft² × Velocity fpm) × System Loss Factor. Use our free sizing tool for precision.

XI. Conclusion: The Future of Industrial Air Movement

Centrifugal blower technology is advancing through:

1. Hyper-Efficiency: EC motors + AI-optimized impellers pushing toward 90% efficiency

2. Smart Industrial Ecosystems: Integration with IIoT platforms for real-time system optimization

3. Sustainable Engineering: Recyclable composites reducing carbon footprint by 40%

*As industry leaders since [Year], we pioneer these innovations – delivering AMCA-certified centrifugal blowers that reduce energy costs by 30% while extending service life to 100,000 hours.*
